SAS, SBS Geared Permanent Magnet DC Stepper Motors

NIDEC-MOTOR.COM

Permanent Magnet DC Stepper Motor Family

Series SAS, SBS Geared

Printer Friendly Version

Discontinued Motor, for reference only
Replaced by LSG55 Series

Permanent Magnet DC Stepper SAS, SBS Geared Specifications:

Step Angle:	7.5° & 15°
Position Accuracy:	+/- 5% max.
Number of Phases:	4 phase bifilar
Insulation Class:	Class A (105°C)
Lead Wire:	6 leads 24AWG (approx. 9 inches [228.6 mm])
Operation Ambient Temp:	-10°C to +40°C (approx.)
Shaft Bearing:	Sleeve Bearing
Gear Unit:	Zinc Die Cast - AGMA 7 Standards with hardened steel gears
Note: Typical data subject to change without notification

Additional Information:

These stepping motors are designed for applications where space is limited and precise performance is required. Motors are available for 6, 12, or 24 VDC operation. Geared motors have a range of step angles from 0.0125° to 7.5°, and output speeds @ 200 p/s from 0.42 to 250.0 rpm.

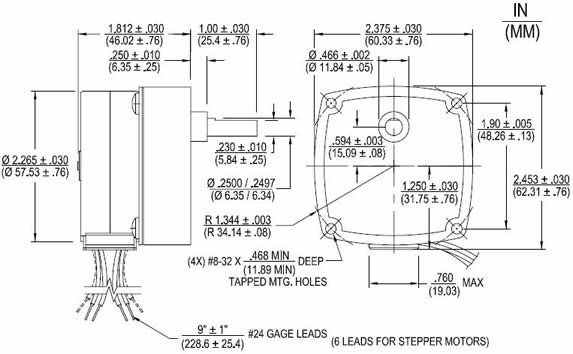

SAS, SBS Geared Drawings:

SAS, SBS Direct Drive Diagrams:

SAS, SBS Geared Model Table:

Model	Part Number	Nom. Voltage (Vdc)	Step Angle (deg)	Steps per Rev	Reduction	Rated Torque @ 200 p/s (oz-in)	Rated Torque @ 200 p/s (mN-m)	Typical Output Speed (RPM)	Input Power (watts)	Winding Res. (ohms)	Weight (oz)	Weight (g)
SAS	4004-001¹	12	.0125	28800	600	200	1412.3	.42	8	36	16	453.6
SAS	4004-002¹	12	.025	14400	300	200	1412.3	.83	8	36	16	453.6
SAS	4004-021	6	.025	14400	300	200	1412.3	.83	8	36	16	453.6
SAS	4004-004	12	.05	7200	150	185	1306.4	1.67	8	36	16	453.6
SAS	4004-006¹	12	.1	3600	75	162	1144	3.33	8	36	16	453.6
SAS	4004-027	24	.1	3600	75	162	1144	3.33	8	36	16	453.6
SAS	4004-009	12	.2	1800	37.5	126	889.8	6.67	8	36	16	453.6
SAS	4024-003	12	.2	1800	37.5	126	889.8	6.67	8	36	16	453.6
SAS	4004-010	12	.25	1440	30	101	713.2	8.33	8	36	16	453.6
SAS	4004-026	6	.25	1440	30	101	713.2	8.33	8	36	16	453.6
SAS	4004-012	12	.5	720	15	54	381.3	16.67	8	36	16	453.6
SAS	4004-014	12	.75	480	10	36	254.2	25	8	36	16	453.6
SAS	4004-025	24	.75	480	10	36	254.2	25	8	36	16	453.6
SAS	4004-019	12	3.75	96	2	7.2	50.8	125	8	36	16	453.6

Notes:
¹ Maximum Gear Train Loading.
