Permanent Magnet DC Stepper Motor Family

Series 55mm Geared

Printer Friendly Version

Permanent Magnet DC Stepper LSG55 Geared Specifications:

Frame Size:	55mm
Step Angle:	7.5°
Position Accuracy:	+/- 5% max.
Number of Phases:	4 phase bifilar
Insulation Class:	Class A (105°C)
Lead Wire:	6 leads 24AWG (approx. 9 inches [228.6 mm])
Shaft Bearings:	Sleeve/Ball (see Drawings Below)
Operation Ambient Temp:	-10°C to +40°C (approx.)
Temperature Rise:	60°C max
Note: Typical data subject to change without notification

LSG55 Geared Drawings:

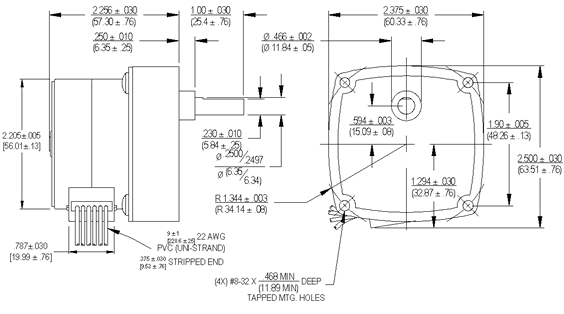

With Sleeve Bearing

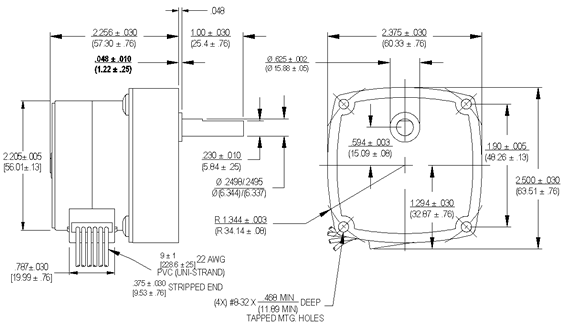

With Ball Bearing

LSG55 Geared Diagrams:

LSG55 Geared Model Table:

Add to Cart	Model	Part Number	Nom. Voltage (Vdc)	Step Angle (deg)	Steps per Rev	Reduction	Rated Torque @ 175 p/s (oz-in)	Rated Torque @ 175 p/s (mN-m)	Typical Output Speed (RPM)	Input Power (watts)	Winding Res. (ohms)	Rated Ind. (mH)	Weight (oz)	Weight (g)
	LSG55	LSG55T006F46S	6	.375	960	20	67	473.1	10.9	9	8	9.5	18	510.3
	LSG55	LSG55T006F52S	6	.25	1440	30	101	713.2	7.3	9	8	9.5	18	510.3
	LSG55	LSG55T006F98S	6	.025	14400	300	200	1412.3	.73	9	8	9.5	18	510.3
	LSG55	LSG55T012E04S	12	3.75	96	2	7.2	50.8	109.4	9	32	33	18	510.3
	LSG55	LSG55T012E30S	12	.75	480	10	36	254.2	21.9	9	32	33	18	510.3
	LSG55	LSG55T012F40S	12	.5	720	15	54	381.3	14.6	9	32	33	18	510.3
	LSG55	LSG55T012F52S	12	.25	1440	30	101	713.2	7.3	9	32	33	18	510.3
	LSG55	LSG55T012F58S	12	.2	1800	37.5	126	889.8	5.8	9	32	33	18	510.3
	LSG55	LSG55T012E76S	12	.1	3600	75	162	1144	2.9	9	32	33	18	510.3
	LSG55	LSG55T012E90S	12	.05	7200	150	185	1306.4	1.5	9	32	33	18	510.3
	LSG55	LSG55T012F98S	12	.025	14400	300	200	1412.3	.73	9	32	33	18	510.3
Contact Factory	LSG55	LSG55T012F97S	12	.0125	28800	600	200	1412.3	.36	9	32	33	18	510.3
	LSG55	LSG55T024E30S	24	.75	480	10	36	254.2	21.9	9	128	145	18	510.3
	LSG55	LSG55T024E76S	24	.1	3600	75	162	1144	2.9	9	128	145	18	510.3
Contact Factory	LSG55	LSG55T006F97S	6	.0125	28800	600	200	1412.3	.36	9	8	9.5	18	510.3

Notes:
¹ Maximum Gear Train Loading.
