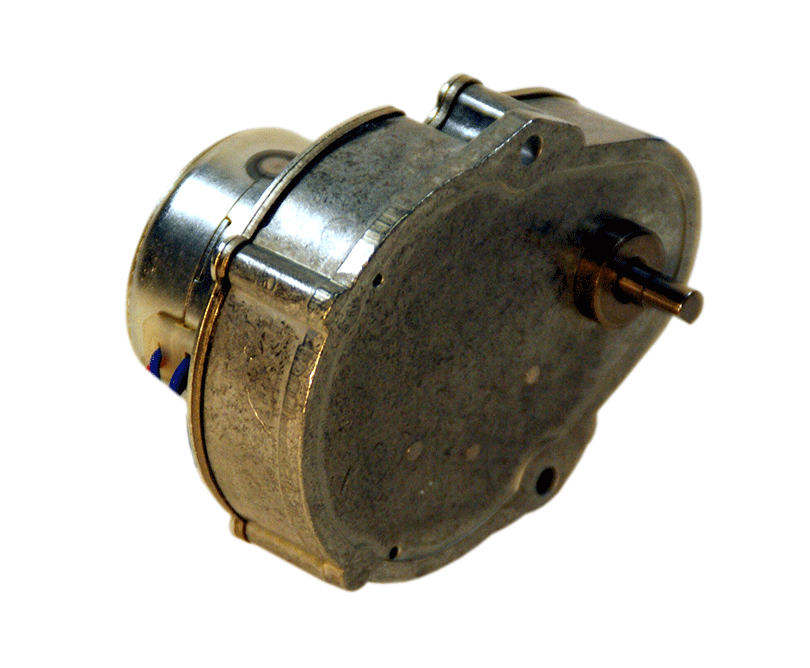

LSG35 35mm Geared Permanent Magnet DC Stepper Motors


Click to Enlarge

Purchase Now!
(U.S. payments only)

Permanent Magnet DC Stepper Motor Family

Series 35mm Geared

Printer Friendly Version

Permanent Magnet DC Stepper LSG35 Geared Specifications:

Frame Size:	35mm
Max Torque:	150 oz-in [1059 mN-m]
Step Angle:	7.5°
Position Accuracy:	+/- 5% max.
Number of Phases:	4 phase bifilar
Insulation Class:	Class A (105°C)
Insulation Resistance:	100 MΩ at 500Vdc
Dielectric Strength:	600 Vac/second
Lead Wire:	6 leads 28AWG (approx. 9 inches [228.6 mm])
Operation Ambient Temp:	-10°C to +40°C (approx.)
Temperature Rise:	60°C max
Gear Housing:	Die cast housing with hardened steel gears
Note: Typical data subject to change without notification

LSG35 Geared Drawings:

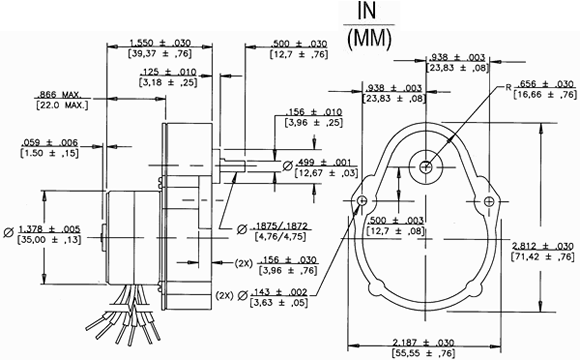

Pear-Shaped Gear Mounting

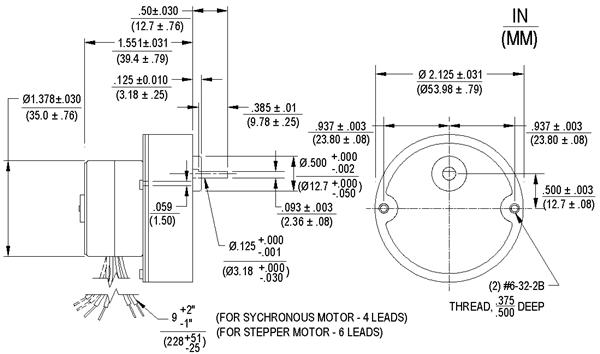

Round-Shaped Gear Mounting With Sleeve Bearing

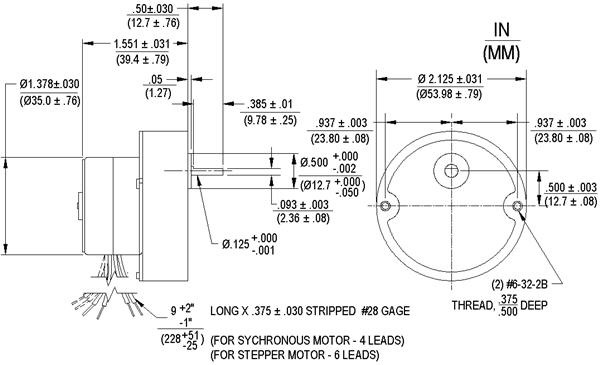

Round-Shaped Gear Mounting With Ball Bearing
NOTE: If ball bearings are desired please contact factory.

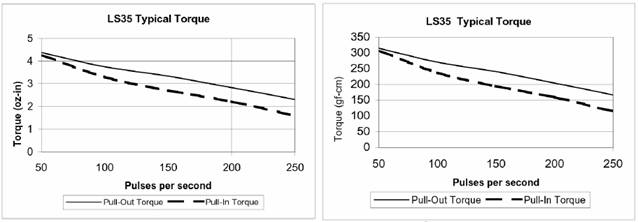

LSG35 Geared Diagrams:

LSG35 Geared Model Table:

Add to Cart	Model	Part Number	Rated Torque @ 175 p/s (oz-in)	Rated Torque @ 175 p/s (mN-m)	Reduction	Nominal Voltage (Vdc)	Step Angle (deg)	Steps per Rev.	Typical Output Speed (RPM)	Input Power (watts)	Winding Res. (ohms)	Rated Ind. (mH)	Rotor Inertia (gm-cm²)	Rotor Inertia (oz-in²)	Weight (oz)	Weight (grams)
	LSG35	LSG35012E98P¹	150	1059.2	300	12	.025	14400	.73	4.5	65	27	6.8	.0372	8.6	243.8
	LSG35	LSG35024E98P¹	150	1059.2	300	24	.025	14400	.73	4.2	280	215	6.8	.0372	8.6	243.8
	LSG35	LSG35012E96P¹	150	1059.2	250	12	.03	12000	.88	4.5	65	27	6.8	.0372	8.6	243.8
	LSG35	LSG35012E90P¹	150	1059.2	150	12	.05	7200	1.46	4.5	65	27	6.8	.0372	8.6	243.8
Contact Factory	LSG35	LSG35012E88P	136.5	963.9	125	12	.06	6000	1.75	4.5	65	27	6.8	.0372	8.6	243.8
Contact Factory	LSG35	LSG35012E86P	131	925.1	120	12	.063	5760	1.82	4.5	65	27	6.8	.0372	8.6	243.8
Contact Factory	LSG35	LSG35012E84P	122.9	867.9	112.5	12	.067	5400	1.94	4.5	65	27	6.8	.0372	8.6	243.8
	LSG35	LSG35012E82P	109	769.7	100	12	.075	4800	2.19	4.5	65	27	6.8	.0372	8.6	243.8
Contact Factory	LSG35	LSG35012F80P	112	790.9	83.33	12	.09	4000	2.63	4.5	65	27	6.8	.0372	8.6	243.8
Contact Factory	LSG35	LSG35012F78P	107	755.6	80	12	.094	3840	2.73	4.5	65	27	6.8	.0372	8.6	243.8
	LSG35	LSG35012F76P	101	713.2	75	12	.1	3600	2.92	4.5	65	27	6.8	.0372	8.6	243.8
	LSG35	LSG35012F70P	80	564.9	60	12	.125	2880	3.65	4.5	65	27	6.8	.0372	8.6	243.8
Contact Factory	LSG35	LSG35012F66P	73	515.5	54	12	.139	2592	4.05	4.5	65	27	6.8	.0372	8.6	243.8
	LSG35	LSG35012F64P	67	473.1	50	12	.15	2400	4.38	4.5	65	27	6.8	.0372	8.6	243.8
Contact Factory	LSG35	LSG35012F62P	56	395.4	41.67	12	.18	2000	5.25	4.5	65	27	6.8	.0372	8.6	243.8
	LSG35	LSG35012F60P	54	381.3	40	12	.188	1920	5.47	4.5	65	27	6.8	.0372	8.6	243.8
	LSG35	LSG35012F58P	50	353.1	37.5	12	.2	1800	5.83	4.5	65	27	6.8	.0372	8.6	243.8
Contact Factory	LSG35	LSG35012F56P	45	317.8	33.33	12	.225	1600	6.56	4.5	65	27	6.8	.0372	8.6	243.8
Contact Factory	LSG35	LSG35012F54P	42	296.6	31.25	12	.24	1500	7	4.5	65	27	6.8	.0372	8.6	243.8
	LSG35	LSG35012F52P	40	282.5	30	12	.25	1440	7.29	4.5	65	27	6.8	.0372	8.6	243.8
	LSG35	LSG35024F52P	40	282.5	30	24	.25	1440	7.3	4.2	280	215	6.8	.0372	8.6	243.8
	LSG35	LSG35012F50P	33	233	25	12	.3	1200	8.75	4.5	65	27	6.8	.0372	8.6	243.8
Contact Factory	LSG35	LSG35012F48P	28	197.7	20.83	12	.36	1000	10.5	4.5	65	27	6.8	.0372	8.6	243.8
	LSG35	LSG35012F46P	26	183.6	20	12	.375	960	10.94	4.5	65	27	6.8	.0372	8.6	243.8
	LSG35	LSG35012E44P	24	169.5	16.67	12	.45	800	13.13	4.5	65	27	6.8	.0372	8.6	243.8
	LSG35	LSG35012E42P	23	162.4	16	12	.469	768	13.67	4.5	65	27	6.8	.0372	8.6	243.8
	LSG35	LSG35012E40P	22	155.4	15	12	.5	720	14.58	4.5	65	27	6.8	.0372	8.6	243.8
Contact Factory	LSG35	LSG35012E38P	20	141.2	13.33	12	.563	640	16.41	4.5	65	27	6.8	.0372	8.6	243.8
	LSG35	LSG35012E36P	18	127.1	12.5	12	.6	600	17.5	4.5	65	27	6.8	.0372	8.6	243.8
	LSG35	LSG35012E34P	17	120	12	12	.625	576	18.23	4.5	65	27	6.8	.0372	8.6	243.8
	LSG35	LSG35012E30P	15	105.9	10	12	.75	480	21.88	4.5	65	27	6.8	.0372	8.6	243.8
	LSG35	LSG35012E28P	12	84.7	8.33	12	.9	400	26.25	4.5	65	27	6.8	.0372	8.6	243.8
	LSG35	LSG35012E24P	11	77.7	7.5	12	1	360	29.17	4.5	65	27	6.8	.0372	8.6	243.8
Contact Factory	LSG35	LSG35012E22P	9	63.6	6.25	12	1.2	300	35	4.5	65	27	6.8	.0372	8.6	243.8
	LSG35	LSG35012E20P	7.3	51.5	5	12	1.5	240	43.75	4.5	65	27	6.8	.0372	8.6	243.8
	LSG35	LSG35012E18P	6.1	43.1	4.17	12	1.8	200	52.5	4.5	65	27	6.8	.0372	8.6	243.8
Contact Factory	LSG35	LSG35012E16P	5.9	41.7	4	12	1.875	192	54.69	4.5	65	27	6.8	.0372	8.6	243.8
	LSG35	LSG35012E12P	4.9	34.6	3.33	12	2.25	160	65.63	4.5	65	27	6.8	.0372	8.6	243.8
	LSG35	LSG35012E10P	4.4	31.1	3	12	2.5	144	72.92	4.5	65	27	6.8	.0372	8.6	243.8
	LSG35	LSG35012E08P	3.7	26.1	2.5	12	3	120	87.5	4.5	65	27	6.8	.0372	8.6	243.8
	LSG35	LSG35012E04P	2.9	20.5	2	12	3.75	96	109.38	4.5	65	27	6.8	.0372	8.6	243.8
	LSG35	LSG35012FR30²	15	105.9	10	12	.75	480	21.8	4.5	65	27	6.8	.0372	8.6	243.8
	LSG35	LSG35012FR40²	22	155.4	15	12	.5	720	14.6	4.5	65	27	6.8	.0372	8.6	243.8
	LSG35	LSG35012FR52²	40	282.5	30	12	.25	1440	7.3	4.5	65	27	6.8	.0372	8.6	243.8
	LSG35	LSG35012ER70²	80	564.9	60	12	.125	2880	3.6	4.5	65	27	6.8	.0372	8.6	243.8

Notes:
¹ Maximum Gear Train Loading.
² Round-Shaped Gear Housing construction with sleeve bearings.
