Hybrid Stepper Motor Family

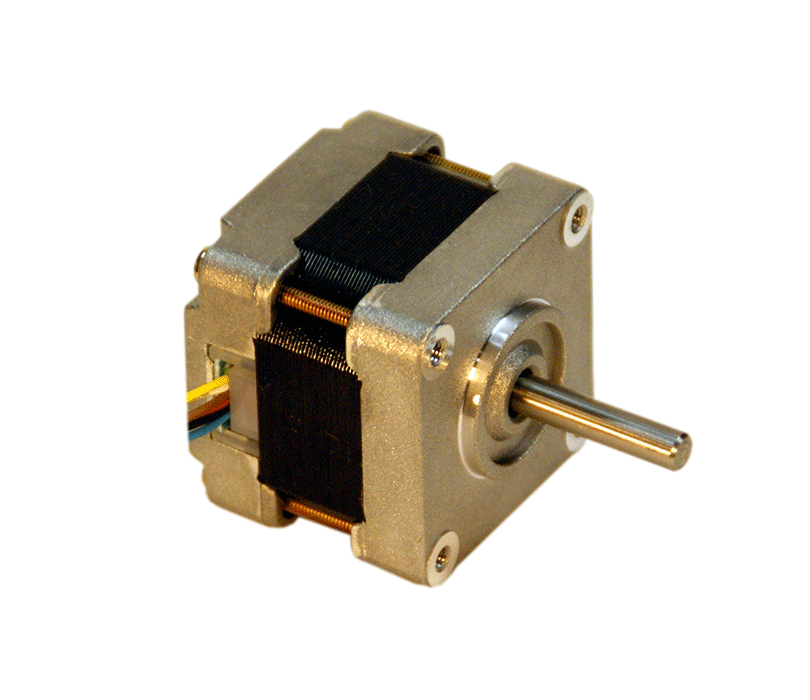

Series H17 Hybrid Stepper Motor
H17 Hybrid Stepper Specifications:
Mounting Flange: NEMA 17
Step angle: 1.8°
Steps per Revolution: 200
Positional Accuracy: + 5% max.
Number of Phases: 4 (unipolar)*
Temperature Rise: 70°C max
Insulation Resistance: 100M ohms at 500VDC for 1 minute
Dielectric Strength: 500VAC for 1 minute
Insulation Class: Class B
Number of lead wires: 6 *
Lead wire: UL3265 AWG#26
Operation Ambient Temp: -10°C ~ +50°C
Radial Play: 0.03 mm max at 0.4 kg load
Axial Play: 0.08 mm max at 0.5 kg load
* Contact Hurst for other lead or phase configurations

Unipolar Drives

Motor phase winding current is switched in only one direction (typically to ground).
  • Simple low cost drive circuit
  • Requires center tap winding
  • Low Output Torque
  • 6 & 8 lead motors
Bipolar Drives
  • Motor phase winding current is switched in both directions.
  • Higher cost drive circuit
  • Higher Output Torque
  • Approximately 1.4 X Unipolar Drive
  • 4, 6, & 8 lead motors
  • 8 Lead Motors are more efficient when used with a bipolar drive.

H17 Hybrid Stepper Drawings:

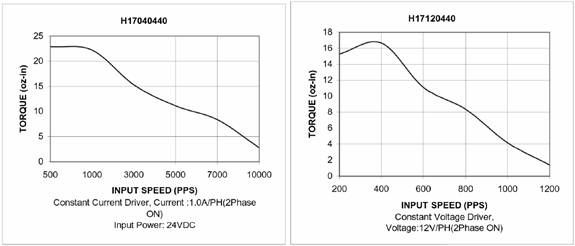

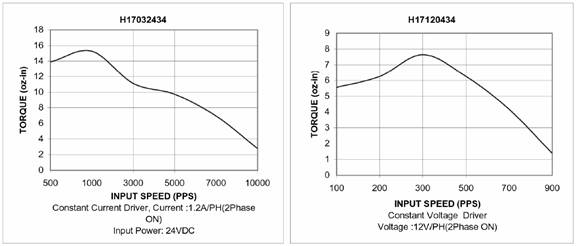

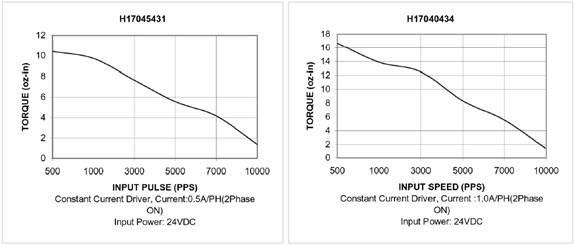

H17 Hybrid Stepper Diagrams:
H17 Hybrid Stepper Part Number Specification:
H17 Hybrid Stepper Model Table:
Add
to
Cart 		Model Part
Number  		 Detent
Torque
(oz-in) 		Detent
Torque
(mN-m) 		Holding
Torque
(oz-in)		 Holding
Torque
(mN-m) 		Nominal
Voltage
(Vdc) 		Input
Power
(watts) 		Current
(amp /
phase)		 Full
Load
Temp
Rise
(deg C)		 Rotor
Inertia
(gm-cm2)		 Rotor
Inertia
(oz-in2)		 Winding
Res.
(ohms)		 Rated
Ind.
(mH)		 Case
Length
(in)		 Case
Length
(mm)		 Weight
(oz) 		Weight
(grams)
H17 H17032434 12.75 90 15.3 108 3.2 7.68 1.2 70 20 .11 2.7 2.3 1.34 34 7.05 200
H17 H17040434 12.75 90 15.3 108 4 8 1 70 20 .11 4 4.2 1.34 34 7.05 200
H17 H17040440 14.16 100 25 176.5 4 8 1 70 30 .16 4 3.7 1.57 40 8.82 250
H17 H17045431 9.91 70 13.9 98.2 4.5 4.5 .5 70 16 .09 9 6 1.22 31 6.35 180
H17 H17120434 12.75 90 15.3 108 12 3.84 .16 70 20 .11 75 85 1.34 34 7.05 200
H17 H17120440 14.16 100 25 176.5 12 9.6 .4 70 30 .16 30 33 1.57 40 8.82 250
