Hysteresis Synchronous Motor Family
Series GA Geared
Discontinued Motor, for reference only
Replaced by T Series Motors
T Geared Series


Hysteresis Synchronous GA Specifications:
Output Speed: 1 to 300 RPM
Torque Range: Up to 600 oz-in [4237 mN-m]
Insulation Class: Class A (105°C)
Additional Information:

GA Series motors provide a high torque rating of 600 oz-in [4237 mN-m] at 1 RPM. A choice of 14 different speeds, from 1 RPM to 300 RPM, are available for operation at 115 VAC at 60 Hz. High quality construction throughout assures dependable field performance.

Heavy Duty Gearing
Gear trains for GA motors are rated for loads of up to 600 oz-in [4237 mN-m]. The selection of materials and the design of each gear in the GA Series gear train is based on its position in the reduction sequence. This provides optimum performance for the unique speed and loading of each gear and overall balance of all components in the gear assembly. Models listed are designed for 115V, 60 Hz operation. A capacitor is required for operation.

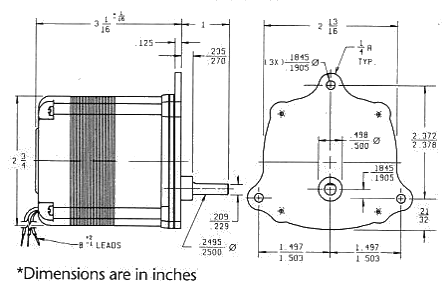

GA Drawings:
GA Diagrams:
GA Geared Model Table:
Model Part
Number
Rated
Torque
(oz-in)
Rated
Torque
(mN-m)
Output
Speed
(RPM)
60Hz
Voltage
(Vac)
60Hz
Input
Power
(watts)
Capacitor
Value
(mfd)
Temp.
Rise
Full
Load
(deg C)
Weight
(oz)
Weight
(grams)
GA 992093 600 4237 1 115 10 1.0 50 40 1134
GA 992094 300 2118 2 115 10 1.0 50 40 1134
GA 992110 200 1412 3 115 10 1.0 50 40 1134
GA 992095 150 1059 4 115 10 1.0 50 40 1134
GA 992112 120 847 5 115 10 1.0 50 40 1134
GA 992096 100 706 6 115 10 1.0 50 40 1134
GA 992097 60 423.7 10 115 10 1.0 50 40 1134
GA 992106 33.3 235.4 18 115 10 1.0 50 40 1134
GA 992098 20 141.2 30 115 10 1.0 50 40 1134
GA 992099 10 70.6 60 115 10 1.0 50 40 1134
GA 992108 6 42.4 100 115 10 1.0 50 40 1134
GA 992100 5 35.3 120 115 10 1.0 50 40 1134
GA 992109 4 28.2 150 115 10 1.0 50 40 1134
GA 992105 2 14.1 300 115 10 1.0 50 40 1134
