Permanent Magnet DC Stepper Motor Family
Series AS, ABS Direct Drive
Permanent Magnet DC Stepper AS, ABS Direct Drive Specifications:
Step Angle: 7.5° & 15°
Position Accuracy: +/- 5% max.
Number of Phases: 4 phase bifilar
Insulation Class: Class A (105°C)
Lead Wire: 6 leads 24AWG (approx. 9 inches [228.6 mm])
Operation Ambient Temp: -10°C to +40°C (approx.)
Note:  Typical data subject to change without notification

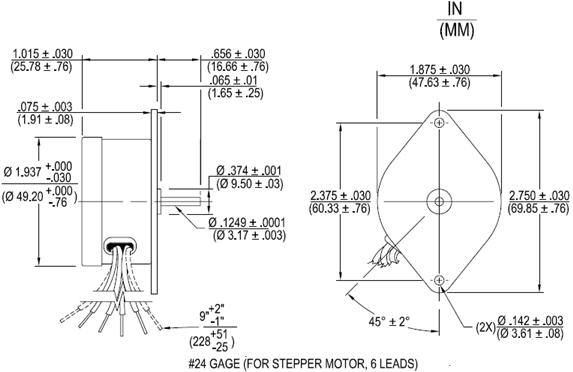

AS, ABS Direct Drive Drawings:
AS, ABS Direct Drive Diagrams:
AS, ABS Direct Drive Model Table:
Add
to
Cart 		Model Part
Number  		 Rated
Torque
@
200 p/s
(oz-in) 		Rated
Torque
@
200 p/s
(mN-m) 		Rated
Torque
@
4-5 p/s
(oz-in)		 Rated
Torque
@
4-5 p/s
(mN-m) 		Holding
Torque
2 Phase
Energized
(oz-in) 		Holding
Torque
2 Phase
Energized
(mN-m) 		Typical
Output
Speed
(RPM) 		Nominal
Voltage
(Vdc) 		Step
Angle
(deg) 		Steps
per
Rev. 		Input
Power
(watts) 		Full
Load
Temp
Rise
(deg C)		 Rotor
Inertia
(gm-cm2)		 Rotor
Inertia
(oz-in2)		 Winding
Res.
(ohms)		 Weight
(oz) 		Weight
(grams)
ABS 3007-001 1.7 12 2.3 16.2 3.8 26.8 500 12 15 24 4.5 48 12.8 .07 53 6.81 193
Contact Factory ABS 3012-0021 1.7 12 2.75 19.4 4.3 30.4 500 12 15 24 4.5 48 12.8 .07 53 6.81 193
Contact Factory AS 3003-001 1.36 9.6 2.3 16.2 3.8 26.8 250 12 7.5 48 3 30 12.8 .07 100 6.81 193
Contact Factory AS 3003-003 1.36 9.6 2.3 16.2 3.8 26.8 250 5 7.5 48 3 48 12.8 .07 14 6.81 193
Contact Factory AS 3010-0021 1.87 13.2 2.75 19.4 4.3 30.4 250 12 7.5 48 3.5 30 12.8 .07 100 6.81 193

















Notes:
1 Hi-Torque Rotor Construction.
