Discontinued Motor
for reference only

Permanent Magnet AC Synchronous Motor Family
Series T, TA Direct Drive
Permanent Magnet AC Synchronous T, TA Direct Drive Specifications:
Output Speed: 250 to 300 RPM
Poles: T Series 24 poles; TA Series 20 poles
Insulation Class: Class A (105°C)
Lead Wire: 4 leads 22AWG (approx. 12 inches [304.8 mm])
Operation Ambient Temp: -10°C to +40°C (approx.)
Shaft Bearing: Sleeve Bearing
Recognition: E53578(N), Component-Impedance  Protected Motors,
115Vac Standard Rotor
Certification: Card No. 42576, Motors and Generators,
115 Vac, 60 Hz, Standard Rotor, 7 watts max.
Note:  Typical data subject to change without notification
Additional Information:
T  series reversible, permanent magnet synchronous motors feature a rugged die cast housing. Motors can be furnished with either standard or Hi-Torque rotors. Sleeve bearings are standard.

T series motors have 24 poles. When operated at 60Hz, rotor speed is 300RPM.

Notes:
  • Standard motors are 115 Vac 60 Hz.
  • A capacitor is required for operation and is furnished with T models. When used in a unidirectional mode the capacitor must be in the circuit

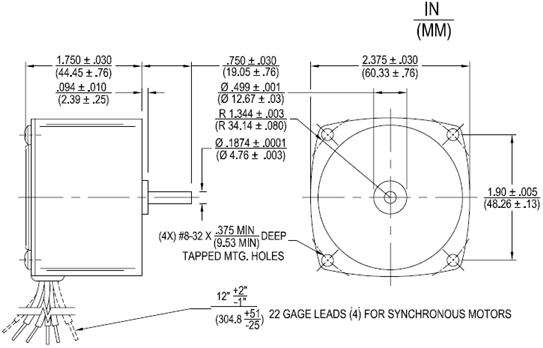

T, TA Direct Drive Drawings:
T, TA Direct Drive Diagrams:
T, TA Direct Drive Model Table:
Model Part
Number		 Rated
Torque
(oz-in)		 Rated
Torque
(mN-m)		 Output
Speed
(RPM)		 Input
Power
(watts)		 Voltage
(Vac)
50Hz		 Voltage
(Vac)
60Hz		 Full
Load
Temp
Rise
(degC)		 Capacitor
Value
(mfd)		 Weight
(oz)		 Weight
(grams)
T 2601-0051 8.5 60 250 6 220 -- 27 .18 20 567
T 2601-001 8.5 60 300 7 -- 115 27 .68 20 567
T 2609-0012 10.25 72.4 300 9.5 -- 115 38 .85 20 567











Notes:
1 Capacitor not supplied with motor.
2 Hi-Torque Rotor Construction.
