Fixed Speed Linear Actuator Motor Family
Series SL, SBL
Discontinued Motor, for reference only
Fixed Speed Linear Actuator SL, SBL Specifications:
Maximum Load: SL 15 lbs., SBL 10 lbs.
Rotor  Assembly: Threaded to accept a std. 1/4"-20 5/6 ACME 2G right-hand screw (Class 2G RH)
Insulation Class: UL Class A (105°C)
Lead Wire: 4 leads 24 AWG (approx. 9 inches [228.6 mm])
Operation Ambient Temp: -10°C to +40°C (approx.)
Rotor Bearings: Ball Bearings Standard
Shaft Length: 8 inches [203.2 mm] max with travel 6.75 inches [171.45 mm]
Recognition: E53578(N), Component-Impedance Protected Motors 115V, 60Hz Standard Rotor
Note:  Typical data subject to change without notification
Additional Information:
SL and SBL synchronous linear actuators are reversible, permanent magnet types. An integral part of the rotor assembly is a sintered bronze nut for extended life. The nut accepts a 1/4 in. diameter, 0.048 pitch Acme screw that provides linear motion for pushing, pulling, lifting, and positioning applications.

Standard 8 in. [203.2 mm] lead screws have maximum travel of 6.75 in. [171.45 mm] and a maximum thrust of 15 pounds. Screws of other lengths may be specified. Ball bearings are standard. The motors provide travel of 0.24 or 0.48 inch [0.61 or 1.22 cm] per second.

Notes:
  • Capacitors are required for SL and SBL synchronous motors.

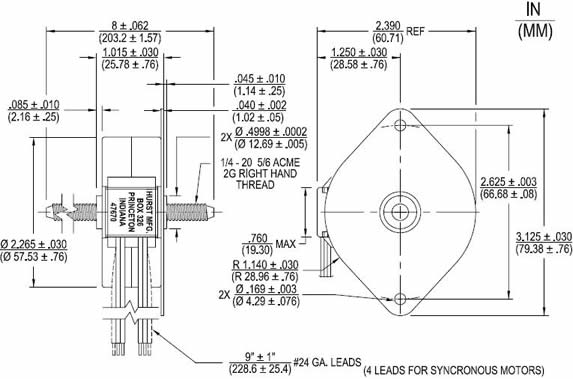

    • SL, SBL Fixed Speed Linear Actuator Drawings:
    SL, SBL Fixed Speed Linear Actuator Diagrams:
    SL, SBL Fixed Speed Linear Actuator Model Table:
    Model Part Number Voltage
    (Vac)
    60 Hz    		 Rotor
    Speed
    (RPM)    		 in/sec cm/sec Maximum
    Load
    (lbs)    		 Maximum
    Load
    (kg)    		 Shaft
    Length
    (in)    		 Shaft
    Length
    (cm)    		 Input
    Power
    (watts)    		 Capacitor
    Value
    (mfd)    		 Weight
    (oz)    		 Weight
    (g)
    SL 4013-001 115 300 .24 .61 15 6.8 8 20.32 6.5 .62 10.5 297.68
    SL 4013-0031 24 300 .24 .61 15 6.8 8 20.32 6.5 15 10.5 297.68
    SL 4013-0041 220 300 .24 .61 15 6.8 8 20.32 6.5 .18 10.5 297.68

    Notes:
    1 Capacitor not supplied with motor.
