Permanent Magnet AC Synchronous Motor Family

Series SC Geared

Printer Friendly Version

Discontinued Motor, for reference only

Permanent Magnet AC Synchronous SC Geared Specifications:

Output Speed:	15 to 300 RPM
Torque Range:	Up to 116 oz-in [819 mN-m]
Insulation Class:	Class A (105°C)
Lead Wire:	4 leads 22AWG (approx. 8.5 inches [215.9 mm])
Operation Ambient Temp:	-10°C to +40°C (approx.)
Shaft Bearing:	Sleeve Bearing
Gear Unit:	Zinc Die Cast - AGMA 7 Standard with hardened steel gears
Recognition:	E53578(N), Component-Impedance Protected Motors, 115Vac Standard Rotor
Certification:	Card No. 42576, Motors and Generators, 115 Vac, 60 Hz, Standard Rotor, 9 watts max.
Note: Typical data subject to change without notification

Additional Information:

SC Series motors, both direct drive and geared versions, have excellent size/torque ratios. All are designed for dependable service in applications where space is limited.

Compact direct drive motors - only 1.5" long - have torque ratings from 8.75 to 11.5 oz-in. Dual sleeve or ball bearings may be specified as well as a double ended shaft.

Standard geared SC Series models are available with output shaft speeds from 15 to 120 RPM. Other shaft speeds are available.

SC Series Motors are 115 VAC at 60 Hz and require a capacitor.

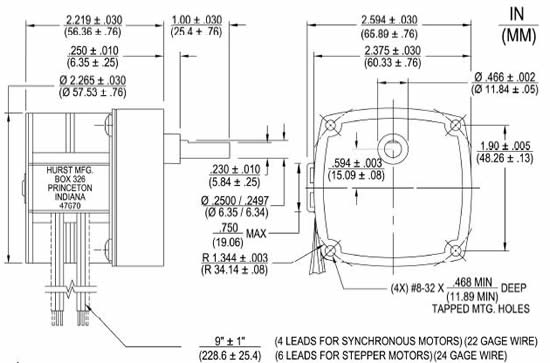

SC Geared Drawings:

SC Geared Diagrams:

SC Geared Model Table:

Model	Part Number	Voltage (Vac) 60 Hz	Rated Torque (oz-in)	Rated Torque (mN-m)	Typical Output Speed (RPM)	Input Power (watts)	Full Load Temp Rise (deg C)	Capacitor Value (mfd)	Weight (oz)	Weight (g)
SC	4402-012¹	115	116	819	15	7	35	.68	18	510.3
SC	4402-013	115	99	699	20	7	35	.68	18	510.3
SC	4402-015	115	66	466	30	7	35	.68	18	510.3
SC	4402-017	115	33	233	60	7	35	.68	18	510.3
SC	4402-020	115	16.5	116.5	120	7	35	.68	18	510.3
SC	4402-003	115	82.5	582.6	30	9	40	.85	18	510.3
SC	4408-004	115	41	289.5	60	9	40	.85	18	510.3
SC	4408-007	115	20.5	144.8	120	9	40	.85	18	510.3

Notes:
¹ Maximum Gear Train Loading.
