Javascript Tree Menu by Deluxe-Tree.com SA Geared Permanent Magnet AC Synchronous Motors


Permanent Magnet AC Synchronous Motor Family
Series SA Geared
Discontinued Motor, for reference only
Replaced by LYG55 Series
Permanent Magnet AC Synchronous SA Geared Specifications:
Output Speed: 1 to 300 RPM
Insulation Class: Class A (105°C)
Lead Wire: 4 leads 22AWG (approx. 9 inches [228.6 mm])
Operation Ambient Temp: -10°C to +40°C (approx.)
Gear Unit: Zinc Die Cast - AGMA 7 Standard with hardened steel gears
Shaft Bearing: Sleeve Bearing
Recognition: E53578(N), Component-Impedance  Protected Motors,
115Vac Standard Rotor
Certification: Card No. 42576, Motors and Generators,
115 Vac, 60 Hz, Standard Rotor, 8.4 watts max.
Note:  Typical data subject to change without notification
Additional Information:
All gears are hobbed to AGMA 7 standards. Pinions are extruded from special steel with a modified long addendum tooth form to provide higher strength. Pinions are held to the same AGMA 7 quality level as the gears. Both pinion and gear teeth are case hardened for wear resistance and rotate upon hardened and ground steel studs.

Notes:
  • Standard motors are 115v, 60Hz. Sleeve bearings are standard but ball bearings as well as other voltages and frequencies may be specified.
  • Capacitors are required for operation and must be used in the circuit even is the motor is used in a unidirectional model.
  • Capacitors are furnished with 115V motors.

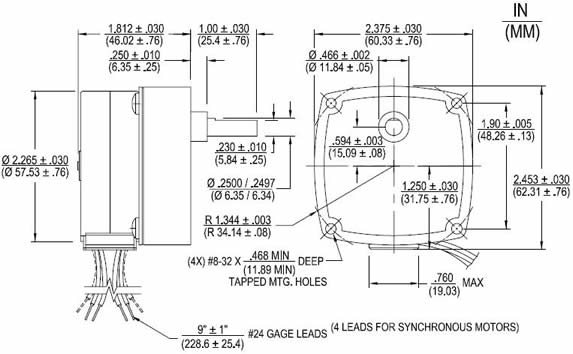

    • SA Geared Drawings:
    SA Geared Diagrams:
    SA Geared Model Table:
    Model Part Number Reduction Voltage
    (Vac)
    50 Hz    		 Voltage
    (Vac)
    60 Hz    		 Rated
    Torque
    (oz-in)    		 Rated
    Torque
    (mN-m)    		 Output
    Speed
    (RPM)    		 Input
    Power
    (watts)    		 Capacitor
    Value
    (mfd)    		 Weight
    (oz)    		 Weight
    (g)
    SA 4002-0023 300 -- 115 200 1412.3 1 5.5 .5 16 453.6
    SA 4002-0202 300 -- 24 200 1412.3 1 5.5 10 16 453.6
    SA 4002-0282 250 220 -- 200 1412.3 1 5.5 .15 16 453.6
    SA 4002-0043 150 -- 115 174 1228.7 2 5.5 .5 16 453.6
    SA 4002-0242 150 -- 24 174 1228.7 2 5.5 10 16 453.6
    SA 4002-005 100 -- 115 161 1136.9 3 5.5 .5 16 453.6
    SA 4002-0302 100 -- 24 161 1136.9 3 5.5 10 16 453.6
    SA 4002-006 75 -- 115 152 1073.4 4 5.5 .5 16 453.6
    SA 4002-0262 75 -- 24 152 1073.4 4 5.5 10 16 453.6
    SA 4002-0422 62.5 230 -- 200 1412.3 4 5.5 .12 16 453.6
    SA 4002-001 600 -- 115 200 1412.3 5 5.5 .5 16 453.6
    SA 4002-007 60 -- 115 145 1023.9 5 5.5 .5 16 453.6
    SA 4002-0083 50 -- 115 140 988.6 6 5.5 .5 16 453.6
    SA 4002-0252 41.67 240 -- 140 988.6 6 5.5 .12 16 453.6
    SA 4002-0332 50 -- 24 140 988.6 6 5.5 10 16 453.6
    SA 4002-034 41.67 115 -- 140 988.6 6 5.5 .5 16 453.6
    SA 4002-0352 41.67 24 -- 140 988.6 6 5.5 10 16 453.6
    SA 4002-0412 50 -- 240 140 988.6 6 5.5 .12 16 453.6
    SA 4002-010 30 -- 115 126 889.8 10 5.5 .5 16 453.6
    SA 4002-0222 30 -- 24 126 889.8 10 5.5 10 16 453.6
    SA 4002-0362 25 24 -- 105 741.5 10 5.5 10 16 453.6
    SA 4002-038 25 115 -- 84 593.2 10 5.5 .5 16 453.6
    SA 4002-014 10 -- 115 45 317.8 30 5.5 .5 16 453.6
    SA 4002-039 8.33 115 -- 28 197.7 30 5.5 .5 16 453.6
    SA 4002-0432 8.33 24 -- 28 197.7 30 5.5 10 16 453.6
    SA 4021-0141 10 -- 115 64 451.9 30 7 .62 16 453.6
    SA 4021-0211, 2 10 -- 24 64 451.9 30 7 15 16 453.6
    SA 4021-0221, 2 8.33 24 -- 53 374.3 30 6 15 16 453.6
    SA 4002-015 5 -- 115 22.5 158.9 60 5.5 .5 16 453.6
    SA 4002-0322 5 -- 24 22.5 158.9 60 5.5 10 16 453.6
    SA 4002-0372 4.17 24 -- 17.5 123.6 60 5.5 10 16 453.6
    SA 4002-040 4.17 115 -- 17.5 123.6 60 5.5 .5 16 453.6
    SA 4021-0151 5 -- 115 32 226 60 7 .62 16 453.6
    SA 4002-018 2.5 -- 115 11 77.7 120 5.5 .5 16 453.6
    SA 4021-0181 2.5 -- 115 16 113 120 7 .62 16 453.6

    Notes:
    1 Hi-Torque Rotor Construction.
    2 Capacitor not supplied with motor.
    3 Maximum Gear Train Loading.
