Permanent Magnet AC Synchronous Motor Family
Series SA Direct Drive
Discontinued Motor, for reference only
Replaced by LYD55 Series
Permanent Magnet AC Synchronous SA Direct Drive Specifications:
Output Speed: 300 RPM
Insulation Class: Class A (105°C)
Lead Wire: 4 leads 22AWG (approx. 9 inches [228.6 mm])
Operation Ambient Temp: -10°C to +40°C (approx.)
Shaft Bearing: Sleeve Bearing (unless otherwise noted)
Recognition: E53578(N), Component-Impedance  Protected Motors
Capacitors are required for operation. Capacitors supplied with 115 Vac motors.
Note:  Typical data subject to change without notification
Additional Information:
Series SA permanent magnet synchronous motors are designed for application where space is limited and precise performance is required. The standard 60Hz models have synchronous speeds of 300 RPM. Standard motors are 115V, 60Hz, other voltages and frequencies may be specified.

Notes:
  • Sleeve or ball bearings are standard. Double ended shafts may be specified.
  • Capacitors are required for operation and must be used in the circuit even if the motor is used in a unidirectional mode.
  • Capacitors are furnished with 115V motors.

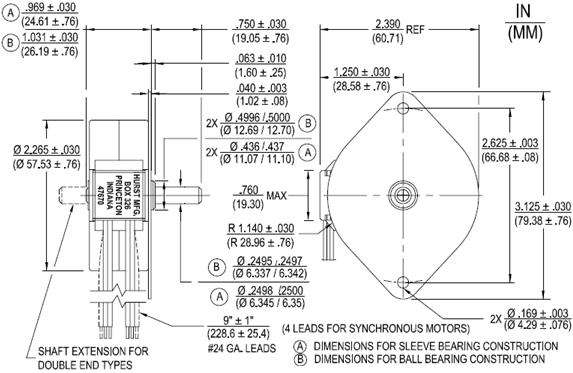

    • SA Direct Drive Drawings:
    SA Direct Drive Diagrams:
    SA Direct Drive Model Table:
    Model Part Number Voltage
    (Vac)
    60 Hz    		 Rated
    Torque
    (oz-in)    		 Rated
    Torque
    (mN-m)    		 Output
    Speed
    (RPM)    		 Input
    Power
    (watts)    		 Full
    Load
    Temp
    Rise
    (deg C)    		 Capacitor
    Value
    (mfd)    		 Weight
    (oz)    		 Weight
    (g)
    SA 4001-001 115 6 42.4 300 5.5 28 .5 8 226.8
    SA 4001-0032 24 6 42.4 300 5.5 28 10 8 226.8
    SA 4009-0013 115 7 49.4 300 5.5 28 .5 8 226.8
    SA 4017-0011 115 8.5 60 300 7 37 .62 8 226.8
    SA 4018-0011, 3 115 8.5 60 300 7 37 .62 8 226.8
    SA 4018-0031, 2, 3 24 8.5 60 300 7 37 15 8 226.8

    Notes:
    1 Hi-Torque Rotor Construction.
    2 Capacitor not supplied with motor.
    3 Shaft Bearing: Ball Bearing.
