Hysteresis Synchronous Motor Family
Series MB (Mini-Bee), HB (Honey-Bee) Reversible Hysteresis
Discontinued Motors, for reference only
Hysteresis Synchronous MB (Mini-Bee), HB (Honey-Bee) Specifications:
Output Speed: 900 to 1800 RPM
Lead Wire: 4 leads (approx. 12 inches [304.8 mm])
Operation Ambient Temp: -10°C to +40°C (approx.)
Shaft Bearing: Sealed Ball Bearing
Recognition: MB:  E52207, Component-Systems, Electrical Insulation
HB:  E52207, Component-Systems, Electrical Insulation
Class 105(A) Insulation System
E52177 Component-Motors
Certification: MB:  Card No. 42576, Motors and Generators,
115 Vac, 60 Hz, 1/100 hp, 30 watts max.
Capacitor is required for operation.  Capacitor supplied with 115 Vac motors.
Note:  Typical data subject to change without notification
Additional Information:
REVERSIBLE, INVERTED ROTOR, HYSTERESIS SYNCHRONOUS

MB SERIES

MB Series motors are constructed with an inverted rotor and at 60Hz have a synchronous speed of 1800 RPM. The "fly wheel" effect of the increased rotor inertia provides smooth operation with more uniform angular velocity characteristics than other types.

With a power rating of 1/100 HP, MB motors are particularly suited to applications requiring low flutter, direct drive, synchronous operation. Sealed output ball bearing and machined die cast housing are standard. Models listed are designed for 115V, 60 Hz operation. A capacitor is required for operation.

HB SERIES

HB Series are available in three direct drive synchronous speeds: 1800 RPM (1/35 HP), 1200 RPM (1/70 HP), and 900 RPM (1/115 HP). Inverted rotor design providing superior angular velocity characteristics reduces "flutter" to a minimum. Sealed ball bearings and machined die cast housing are standard. Models listed are designed for 115V, 60 Hz operation. A capacitor is required for operation.

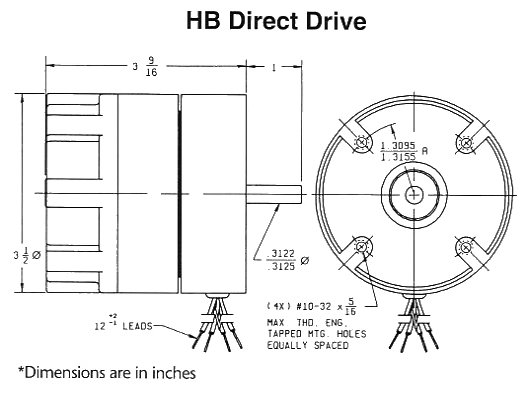

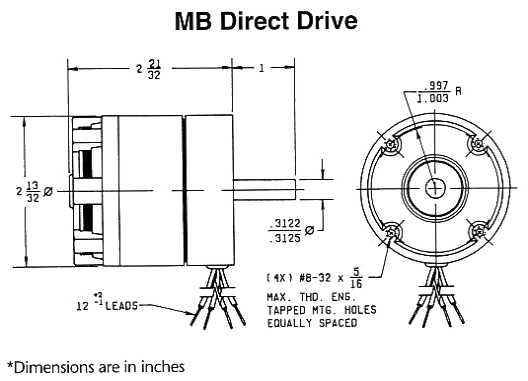

MB (Mini-Bee), HB (Honey-Bee) Drawings:

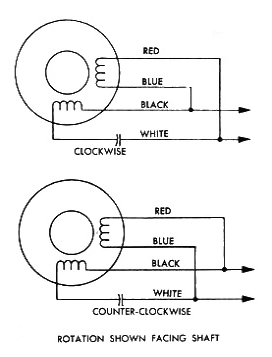

MB (Mini-Bee), HB (Honey-Bee) Diagrams:
MB (Mini-Bee), HB (Honey-Bee) Model Table:
Model Part
Number
Rated
Torque
(oz-in)
Rated
Torque
(mN-m)
Output
Speed
(RPM)
60Hz
Input
Power
(watts)
Voltage
(Vac)
60Hz
Full
Load
Temp
Rise
(degC)
Capacitor
Value
(mfd)
Weight
(oz)
Weight
(grams)
MB 2201-001 5.501
5.252
6.003
38.841
37.072
42.373
1800 30 115 40 2 28 793.8
HB 2203-001 10.21
10.12
14.13
72.01
71.32
99.63
900 40 115 40 2.5 58 1644.3
HB 2002-001 12.81
12.62
17.63
90.401
89.002
124.33
1200 50 115 40 2 58 1644.3
HB 2201-001 17.01
16.82
23.53
120.01
118.62
165.93
1800 70 115 40 4 59 1672.6















Notes:
1 Pull-Out Torque Rating.
2 Locked Rotor Torque Rating.
3 Pull-In Torque Rating.
