Javascript Tree Menu by Deluxe-Tree.com LYG42 42mm Geared Permanent Magnet AC Synchronous Motors

Purchase Now!
(U.S. payments only)

Permanent Magnet AC Synchronous Motor Family
Series 42mm Geared
Permanent Magnet AC Synchronous LYG42 Geared Specifications:
Frame Size: 42mm
Output Speed: .3 to 300 RPM
Standard Voltages: 115 Vac & 24 Vac 50/60 Hz
Insulation Class: Class A (105°C)
Lead Wire: 4 leads 28AWG (approx. 9 inches [228.6 mm])
Operation Ambient Temp: -10°C to +40°C (approx.)
Gear Unit: Zinc Die Cast - AGMA 7 Standard with hardened steel gears
Shaft Bearings: Sleeve bearings
Recognition: E53578(N), Component-Impedance Protected Motors
Capacitor is required for operation.  Capacitor supplied with 115 Vac motors.
Note:  Typical data subject to change without notification

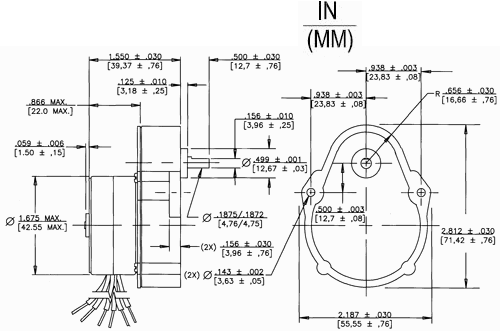

LYG42 Geared Drawings:
LYG42 Geared Diagrams:
LYG42 Geared Model Table:
Add to cart Model Part Number
Torque
(oz-in)
Torque
(mN-m)		 Reduction Voltage
(Vac)
50/60 Hz		 Output
Speed
(RPM)
60 Hz		 Output
Speed
(RPM)
50 Hz		 Input
Power
(watts)		 Capacitor
Value
(mfd)
50/60 Hz		 Winding
Res.
(ohms)		 Ind.
(mH/ph)		 Length
(L, in)		 Length
(L, mm)		 Weight
(oz)		 Weight
(g)
LYG42 LYG42115E04P 6 42.4 2 115 150 125 4 .39 3700 4.7 1.55 39.4 10.2 289.2

LYG42 LYG42115E08P 7 49.4 2 1/2 115 120 100 4 .39 3700 4.7 1.55 39.4 10.2 289.2
LYG42 LYG42115E10P 8 56.5 3 115 100 83.3 4 .39 3700 4.7 1.55 39.4 10.2 289.2

LYG42 LYG42115E12P 9 63.6 3 1/3 115 90 75 4 .39 3700 4.7 1.55 39.4 10.2 289.2
Contact Factory
LYG42 LYG42115E16P 11 77.7 4 115 75 62.5 4 .39 3700 4.7 1.55 39.4 10.2 289.2
LYG42 LYG42115E18P 12 84.7 4 1/6 115 72 60 4 .39 3700 4.7 1.55 39.4 10.2 289.2
LYG42 LYG42115E20P 14 98.9 5 115 60 50 4 .39 3700 4.7 1.55 39.4 10.2 289.2
Contact Factory
LYG42 LYG42115E22P 19 134.2 6 1/4 115 48 40 4 .39 3700 4.7 1.55 39.4 10.2 289.2
LYG42 LYG42115E24P 21 148.3 7 1/2 115 40 33.3 4 .39 3700 4.7 1.55 39.4 10.2 289.2
LYG42 LYG42115E28P 23 162.4 8 1/3 115 36 30 4 .39 3700 4.7 1.55 39.4 10.2 289.2
LYG42 LYG42115E30P 28 197.7 10 115 30 25 4 .39 3700 4.7 1.55 39.4 10.2 289.2

LYG42 LYG42115E34P 34 240.1 12 115 25 20.83 4 .39 3700 4.7 1.55 39.4 10.2 289.2
LYG42 LYG42115E36P 35 247.2 12 1/2 115 24 20 4 .39 3700 4.7 1.55 39.4 10.2 289.2
Contact Factory
LYG42 LYG42115E38P 37 261.3 13 1/3 115 22.5 18.75 4 .39 3700 4.7 1.55 39.4 10.2 289.2
LYG42 LYG42115E40P 42 296.6 15 115 20 16.67 4 .39 3700 4.7 1.55 39.4 10.2 289.2
LYG42 LYG42115E42P 45 317.8 16 115 18.8 15.67 4 .39 3700 4.7 1.55 39.4 10.2 289.2
LYG42 LYG42115E44P 47 331.9 16 2/3 115 18 15 4 .39 3700 4.7 1.55 39.4 10.2 289.2
LYG42 LYG42115F46P 51 360.1 20 115 15 12.5 4 .39 3700 4.7 1.55 39.4 10.2 289.2
Contact Factory
LYG42 LYG42115F48P 53 374.3 20 5/6 115 14.4 12 4 .39 3700 4.7 1.55 39.4 10.2 289.2
LYG42 LYG42115F50P 64 451.9 25 115 12 10 4 .39 3700 4.7 1.55 39.4 10.2 289.2
LYG42 LYG42115F52P 77 543.7 30 115 10 8.3 4 .39 3700 4.7 1.55 39.4 10.2 289.2
Contact Factory
LYG42 LYG42115F54P 80 564.9 31 1/4 115 9.6 8 4 .39 3700 4.7 1.55 39.4 10.2 289.2
Contact Factory
LYG42 LYG42115F56P 85 600.2 33 1/3 115 9 7.5 4 .39 3700 4.7 1.55 39.4 10.2 289.2

LYG42 LYG42115F58P 96 677.9 37 1/2 115 8 6.67 4 .39 3700 4.7 1.55 39.4 10.2 289.2
LYG42 LYG42115F60P 102 720.3 40 115 7.5 6.25 4 .39 3700 4.7 1.55 39.4 10.2 289.2
Contact Factory
LYG42 LYG42115F62P 107 755.6 41 2/3 115 7.2 6 4 .39 3700 4.7 1.55 39.4 10.2 289.2
LYG42 LYG42115F64P 128 903.9 50 115 6 5 4 .39 3700 4.7 1.55 39.4 10.2 289.2
Contact Factory
LYG42 LYG42115F66P 138 974.5 54 115 5.6 4.67 4 .39 3700 4.7 1.55 39.4 10.2 289.2
Contact Factory
LYG42 LYG42115F68P 144 1016.9 56 1/4 115 5.3 4.42 4 .39 3700 4.7 1.55 39.4 10.2 289.2
LYG42 LYG42115F70P 150 1059.2 60 115 5 4.17 4 .39 3700 4.7 1.55 39.4 10.2 289.2
LYG42 LYG42115F76P 150 1059.2 75 115 4 3.33 4 .39 3700 4.7 1.55 39.4 10.2 289.2
Contact Factory
LYG42 LYG42115F78P 150 1059.2 80 115 3.8 3.17 4 .39 3700 4.7 1.55 39.4 10.2 289.2
Contact Factory
LYG42 LYG42115F80P 150 1059.2 83 1/3 115 3.6 3 4 .39 3700 4.7 1.55 39.4 10.2 289.2
LYG42 LYG42115E82P 150 1059.2 100 115 3 2.5 4 .39 3700 4.7 1.55 39.4 10.2 289.2
Contact Factory
LYG42 LYG42115E84P 150 1059.2 112 1/2 115 2.7 2.25 4 .39 3700 4.7 1.55 39.4 10.2 289.2
Contact Factory
LYG42 LYG42115E86P 150 1059.2 120 115 2.5 2.083 4 .39 3700 4.7 1.55 39.4 10.2 289.2
Contact Factory
LYG42 LYG42115E88P 150 1059.2 125 115 2.4 2 4 .39 3700 4.7 1.55 39.4 10.2 289.2
LYG42 LYG42115E90P 150 1059.2 150 115 2 1.67 4 .39 3700 4.7 1.55 39.4 10.2 289.2
Contact Factory
LYG42 LYG42115E96P 150 1059.2 250 115 1.2 1 4 .39 3700 4.7 1.55 39.4 10.2 289.2
LYG42 LYG42115E98P 150 1059.2 300 115 1 .83 4 .39 3700 4.7 1.55 39.4 10.2 289.2
LYG42 LYG42115F99P 150 1059.2 900 115 .3 .25 4 .39 3700 4.7 1.55 39.4 10.2 289.2
