Permanent Magnet DC Stepper Motor Family

Series 42mm Geared

Printer Friendly Version

Permanent Magnet DC Stepper LSG42 Geared Specifications:

Frame Size:	42mm
Max Torque:	150 oz-in [1059 mN-m]
Step Angle:	7.5°
Position Accuracy:	+/- 5% max.
Number of Phases:	4 phase bifilar
Insulation Class:	Class A (105°C)
Insulation Resistance:	100 MΩ at 500Vdc
Dielectric Strength:	600 Vac/second
Lead Wire:	6 leads 28AWG (approx. 9 inches [228.6 mm])
Operation Ambient Temp:	-10°C to +40°C (approx.)
Temperature Rise:	60°C max
Gear Housing:	Die cast housing with hardened steel gears
Note: Typical data subject to change without notification

LSG42 Geared Drawings:

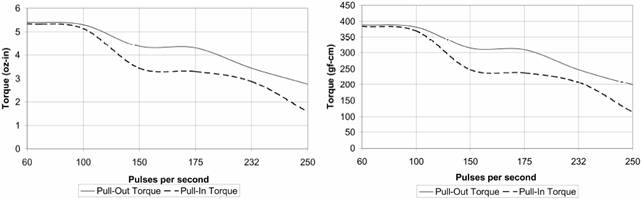

LSG42 Geared Diagrams:

LSG42 Geared Model Table:

Add to Cart	Model	Part Number	Rated Torque @ 175 p/s (oz-in)	Rated Torque @ 175 p/s (mN-m)	Reduction	Nominal Voltage (Vdc)	Step Angle (deg)	Steps per Rev.	Typical Output Speed (RPM)	Input Power (watts)	Winding Res. (ohms)	Rated Ind. (mH)	Rotor Inertia (gm-cm²)	Rotor Inertia (oz-in²)	Case Length (in)	Case Length (mm)	Weight (oz)	Weight (grams)
	LSG42	LSG42012E98P¹	150	1059.2	300	12	.025	14400	.73	5.8	50	33	7.2	.0394	.866	22	10.2	289.2
	LSG42	LSG42012E96P¹	150	1059.2	250	12	.03	12000	.88	5.8	50	33	7.2	.0394	.866	22	10.2	289.2
	LSG42	LSG42012E90P¹	150	1059.2	150	12	.05	7200	1.46	5.8	50	33	7.2	.0394	.866	22	10.2	289.2
Contact Factory	LSG42	LSG42012E88P¹	150	1059.2	125	12	.06	6000	1.75	5.8	50	33	7.2	.0394	.866	22	10.2	289.2
Contact Factory	LSG42	LSG42012E86P¹	150	1059.2	120	12	.063	5760	1.82	5.8	50	33	7.2	.0394	.866	22	10.2	289.2
Contact Factory	LSG42	LSG42012E84P¹	150	1059.2	112.5	12	.067	5400	1.94	5.8	50	33	7.2	.0394	.866	22	10.2	289.2
	LSG42	LSG42012E82P¹	150	1059.2	100	12	.075	4800	2.19	5.8	50	33	7.2	.0394	.866	22	10.2	289.2
Contact Factory	LSG42	LSG42012F80P¹	150	1059.2	83.33	12	.09	4000	2.63	5.8	50	33	7.2	.0394	.866	22	10.2	289.2
	LSG42	LSG42012F78P¹	150	1059.2	80	12	.094	3840	2.73	5.8	50	33	7.2	.0394	.866	22	10.2	289.2
	LSG42	LSG42012F76P¹	150	1059.2	75	12	.1	3600	2.92	5.8	50	33	7.2	.0394	.866	22	10.2	289.2
	LSG42	LSG42024F76P¹	150	1059.2	75	24	.1	3600	2.92	6.1	190	215	7.2	.0394	.866	22	10.2	289.2
	LSG42	LSG42012F70P	138.24	976.2	60	12	.125	2880	3.65	5.8	50	33	7.2	.0394	.866	22	10.2	289.2

Contact Factory	LSG42	LSG42012F66P	124.4	878.5	54	12	.139	2592	4.05	5.8	50	33	7.2	.0394	.866	22	10.2	289.2
	LSG42	LSG42012F64P	115.2	813.5	50	12	.15	2400	4.38	5.8	50	33	7.2	.0394	.866	22	10.2	289.2
Contact Factory	LSG42	LSG42012F62P	96	677.9	41.67	12	.18	2000	5.25	5.8	50	33	7.2	.0394	.866	22	10.2	289.2
	LSG42	LSG42012F60P	92.16	650.8	40	12	.188	1920	5.47	5.8	50	33	7.2	.0394	.866	22	10.2	289.2
	LSG42	LSG42012F58P	86.4	610.1	37.5	12	.2	1800	5.83	5.8	50	33	7.2	.0394	.866	22	10.2	289.2
	LSG42	LSG42012F56P	76.8	542.3	33.33	12	.225	1600	6.56	5.8	50	33	7.2	.0394	.866	22	10.2	289.2
Contact Factory	LSG42	LSG42012F54P	72	508.4	31.25	12	.24	1500	7	5.8	50	33	7.2	.0394	.866	22	10.2	289.2
	LSG42	LSG42012F52P	69.12	488.1	30	12	.25	1440	7.29	5.8	50	33	7.2	.0394	.866	22	10.2	289.2
	LSG42	LSG42012F50P	57.6	406.7	25	12	.3	1200	8.75	5.8	50	33	7.2	.0394	.866	22	10.2	289.2
Contact Factory	LSG42	LSG42012F48P	48	339	20.83	12	.36	1000	10.5	5.8	50	33	7.2	.0394	.866	22	10.2	289.2
	LSG42	LSG42012F46P	46.08	325.4	20	12	.375	960	10.94	5.8	50	33	7.2	.0394	.866	22	10.2	289.2
	LSG42	LSG42012E44P	42	296.6	16.67	12	.45	800	13.13	5.8	50	33	7.2	.0394	.866	22	10.2	289.2
	LSG42	LSG42012E42P	40.32	284.7	16	12	.469	768	13.67	5.8	50	33	7.2	.0394	.866	22	10.2	289.2
	LSG42	LSG42012E40P	37.8	266.9	15	12	.5	720	14.58	5.8	50	33	7.2	.0394	.866	22	10.2	289.2
Contact Factory	LSG42	LSG42012E38P	33.6	237.3	13.33	12	.563	640	16.41	5.8	50	33	7.2	.0394	.866	22	10.2	289.2
	LSG42	LSG42012E36P	31.5	222.4	12.5	12	.6	600	17.5	5.8	50	33	7.2	.0394	.866	22	10.2	289.2
	LSG42	LSG42012E34P	30.24	213.5	12	12	.625	576	18.23	5.8	50	33	7.2	.0394	.866	22	10.2	289.2
	LSG42	LSG42012E30P	25.2	178	10	12	.75	480	21.88	5.8	50	33	7.2	.0394	.866	22	10.2	289.2
	LSG42	LSG42024E30P	25.2	178	10	24	.75	480	21.88	6.1	190	215	7.2	0.394	.866	22	10.2	289.2
	LSG42	LSG42012E28P	21	148.3	8.33	12	.9	400	26.25	5.8	50	33	7.2	.0394	.866	22	10.2	289.2
	LSG42	LSG42012E24P	18.9	133.5	7.5	12	1	360	29.17	5.8	50	33	7.2	.0394	.866	22	10.2	289.2
Contact Factory	LSG42	LSG42012E22P	15.75	111.2	6.25	12	1.2	300	35	5.8	50	33	7.2	.0394	.866	22	10.2	289.2
	LSG42	LSG42012E20P	12.6	89	5	12	1.5	240	43.75	5.8	50	33	7.2	.0394	.866	22	10.2	289.2
	LSG42	LSG42012E18P	10.5	74.1	4.17	12	1.8	200	52.5	5.8	50	33	7.2	.0394	.866	22	10.2	289.2
Contact Factory	LSG42	LSG42012E16P	10.08	71.2	4	12	1.875	192	54.69	5.8	50	33	7.2	.0394	.866	22	10.2	289.2
	LSG42	LSG42012E12P	8.4	59.3	3.33	12	2.25	160	65.63	5.8	50	33	7.2	.0394	.866	22	10.2	289.2
	LSG42	LSG42012E10P	7.56	53.4	3	12	2.5	144	75.92	5.8	50	33	7.2	.0394	.866	22	10.2	289.2
	LSG42	LSG42012E08P	6.3	44.5	2.5	12	3	120	87.5	5.8	50	33	7.2	.0394	.866	22	10.2	289.2
	LSG42	LSG42012E04P	5.04	35.6	2	12	3.75	96	109.38	5.8	50	33	7.2	.0394	.866	22	10.2	289.2

Notes:
¹ Maximum Gear Train Loading.
² Round-Shaped Gear Housing construction.
