Permanent Magnet DC Stepper Motor Family
Series 35mm Direct Drive Stepper Motor
Permanent Magnet DC Stepper LSD35 Direct Drive Specifications:
| Frame Size: | 35mm |
| Step Angle: | 7.5° |
| Steps per Revolution: | 48 |
| Position Accuracy: | +/- 5% max. |
| Number of Phases: | 4 phase bifilar |
| Insulation Class: | Class A (105°C) |
| Insulation Resistance: | 100 MΩ at 500Vdc |
| Dielectric Strength: | 600 Vac/second |
| Lead Wire: | 6 leads 28AWG (approx. 9 inches [228.6 mm]) |
| Operation Ambient Temp: | -10°C to +40°C (approx.) |
| Temperature Rise: | 60°C max |
| Note: Typical data subject to change without notification | |

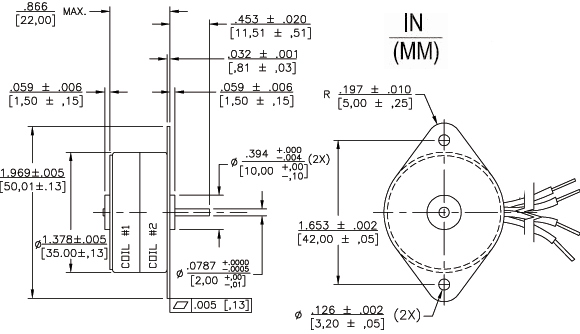

LSD35 Direct Drive Drawings:
 |
LSD35 Direct Drive Diagrams:
 |
 |
| Add to cart | Part Number | Nom. Voltage (Vdc) |
Rated Torque @ 175 p/s (oz-in) |
Rated Torque @ 175 p/s (mN-m) |
Holding Torque (oz-in) (2 Phase Energized) |
Holding Torque (mN-m) (2 Phase Energized) |
Detent Torque (oz-in) |
Detent Torque (mN-m) |
Typical Output Speed (RPM) |
Input Power (watts) |
Winding Res. (ohms) |
Rated Ind. (mH) |
Rotor Inertia (oz-in2) |
Rotor Inertia (gm-cm2) |
Case Length (in) |
Case Length (mm) |
Weight (oz) |
Weight (g) |
| LSD35005D | 5 | 2.1 | 15 | 5.81 | 41 | 1.8 | 12.7 | 300 | 3.2 | 16 | 6.9 | .037 | 6.8 | .866 | 22 | 2.9 | 82.2 | |
| LSD35006D | 6 | 2.1 | 15 | 6.00 | 42.4 | 1.8 | 12.7 | 300 | 4.2 | 17.5 | 9 | .037 | 6.8 | .866 | 22 | 2.9 | 82.2 | |
| LSD35012D | 12 | 2.1 | 15 | 6.25 | 44.1 | 1.8 | 12.7 | 300 | 4.5 | 65 | 27 | .037 | 6.8 | .866 | 22 | 2.9 | 82.2 | |
| LSD35024D | 24 | 2.1 | 15 | 6.00 | 42.4 | 1.8 | 12.7 | 300 | 4.2 | 280 | 215 | .037 | 6.8 | .866 | 22 | 2.9 | 82.2 |
