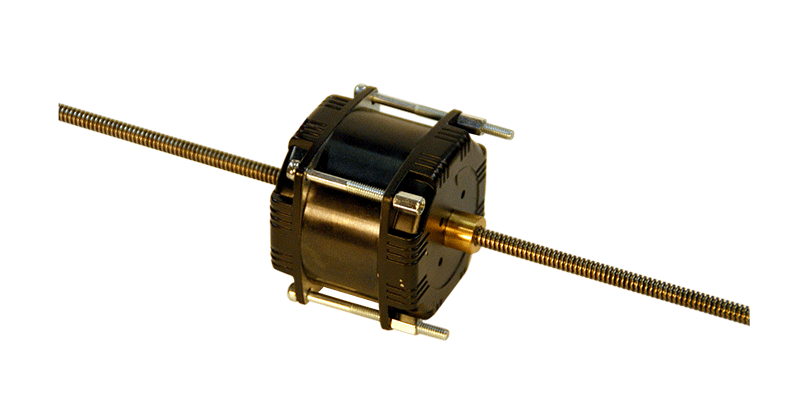

Fixed Speed Linear Actuator Motor Family
Series LA, LB AC Synchronous
Fixed Speed Linear Actuator LA, LB Specifications:
Maximum Load: LA 10 lbs., LB 6.5 lbs.
Rotor  Assembly: Threaded to accept a std. 1/4"-16 ACME 2G right-hand screw (Class 2G RH)
Insulation Class: UL Class A (105°C)
Lead Wire: LAS/LBS 6 leads 24 AWG (approx. 8.5 inches [215.9 mm])
Operation Ambient Temp: -10°C to +40°C (approx.)
Motor Construction: Die cast end bells and ball bearing construction
Shaft Length: 8 inches [203.2 mm] max with travel 5.25 inches [133.35 mm]
Applications: Pushing, Pulling, Lifting, and Positioning
Note:  Typical data subject to change without notification
Additional Information:
The LA and LB synchronous motor/actuator offers an economical choice of controlled linear motion for pulling, pushing, or lifting. The rotor assembly contains a nut which accepts a standard 1/4" diameter, 16 TPI, RH Acme screw giving a Class 2G fit. Standard threaded rod is 8" length.

LA and LB series synchronous motors have rotor speeds of 300 RPM (LA) and 600 (LB) and linear travels of 5/16 and 5/8 in./sec., respectively.

All motors are reversible and have die cast end bells and ball bearing construction.

Notes:
  • Capacitors are required for operation.
  • Stocked in 115Vac 60Hz. Other voltages may be specified.
    • LA, LB Fixed Speed Linear Actuator Drawings:
    LA, LB Fixed Speed Linear Actuator Diagrams:
    LA, LB Fixed Speed Linear Actuator Model Table:
    Add
    to
    Cart         		Model Part
    Number         		Voltage
    (Vac)
    60Hz         		Maximum
    Load
    (lbs)         		Maximum
    Load
    (kg)         		Shaft
    Length
    (in)         		Shaft
    Length
    (cm)         		in/sec cm/sec Full
    Load
    Temp
    Rise
    (degC)         		Capacitor
    Value
    (mfd)    		 Weight
    (oz)         		Weight
    (g)
    		LA 3601-001 115 10 4.54 8 20.3 .31 .79 34 .68 22 624
    		LA 3601-002 220 10 4.54 8 20.3 .31 .79 34 .18 22 624
    		LB 3603-001 115 6.5 2.95 8 20.3 .63 1.59 44 .82 22 624
