Brushed DC Motor Family
Series KD Geared
Brushed DC KD Geared Specifications:
Mounting: NEMA 2-11 Standard
Torque Rating: 5.8 to 237- oz-in [50 to 1673 mN-m]
Nominal Voltage: 90 Vdc
Operating Ambient Temp: < 50°C
Gearing: Heli-Spur Design
Leads: 2 leads 22AWG (approx. 16 inches [406.4 mm])
Note:  Typical data subject to change without notification
Additional Information:
The HURST® KD high efficiency DC motor is a brush type, permanent-magnet motor. With the constant flux field, the speed-torque and current-torque curves are linear, and reliability and efficiency are improved. Two leads from the motor allow simple reversing.

The KD is furnished with a heavy duty integral gear unit with a wide range of reductions. Gearing is of "Heli-Spur" design with helical gears in the primary stage for quiet operation and hardened spur gears in the secondary stages.

Notes:
  • 90Vdc is standard. Contact factory for other voltages. Non-Standard motors are available with 6, 12, and 24Vdc windings (minimum buy for non-standard KD models are 25 pieces).
  • All performance data based upon operation with uniform DC current. Rectified and non-filtered AC change performance values.

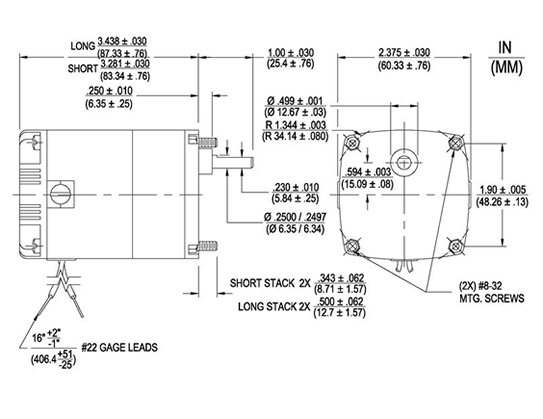

    • KD Geared Drawings:
    KD Geared Diagrams:

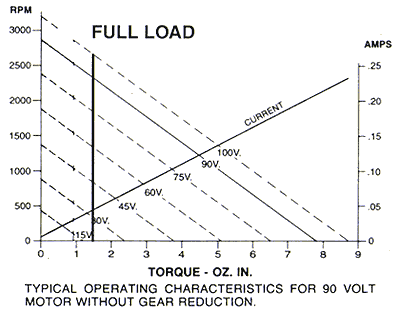

    Add
    to
    Cart         		Model Part
    Number         		Stock Grainger SKU Rated
    Torque
    (oz-in)         		Rated
    Torque
    (mN-m)         		Rated
    Torque
    (In-Lbs)         		Reduction Typical
    Output
    Speed
    (RPM)         		Track
    Speed
    Range
    Full
    Load
    (RPM)    		 Track
    Speed
    Range
    No
    Load
    (RPM)    		 Nominal
    Voltage
    (Vdc)    		 Typical
    Full
    Load
    Current
    Low
    (A)    		 Typical
    Full
    Load
    Current
    High
    (A)    		 Input
    Power
    (watts)         		Case
    Length
    (in)    		 Case
    Length
    (mm)    		 Weight
    (oz)         		Weight
    (grams)
    		KD 3402-0011 Stock 4FM10 237 1673.5 14.8 1800 1.2 .95-1.2 1.1-1.5 90 .018 .028 2.25 3.44 87.4 3 85.1
    		KD 3402-0021 Stock 4FM11 206 1454.6 12.9 900 2.5 2.3-2.5 2.6-3.2 90 .022 .03 2.25 3.44 87.4 3 85.1
    		KD 3402-0031 Stock 4FM12 190 1341.6 11.9 600 3.7 3.1-3.7 3.9-4.5 90 .025 .03 2.25 3.44 87.4 3 85.1
    		KD 3402-0041 Stock 4FM13 166 1172.1 10.4 300 7.4 6.3-7.4 7.7-9 90 .032 .04 2.25 3.44 87.4 3 85.1
    		KD 3402-0051 Stock 4FM14 150 1059.2 9.38 180 12.2 11.5-12.2 14-15 90 .039 .046 2.25 3.44 87.4 3 85.1
    		KD 3402-006 Stock 4FM15 69 487.2 4.31 60 35 30-35 40-45 90 .048 .06 2.25 3.44 87.4 3 85.1
    		KD 3402-007 Stock 4FM16 35 247.1 2.19 30 75 65-75 80-90 90 .048 .06 2.25 3.28 83.3 3 85.1
    		KD 3402-008 Stock 4FM17 22.5 158.9 1.41 18 135 120-135 145-170 90 .048 .06 2.25 3.28 83.3 3 85.1
    		KD 3402-009 Stock 4FM18 10 70.6 .625 9 245 220-245 270-305 90 .048 .058 2.25 3.28 83.3 3 85.1
    		KD 3402-010 Stock 4FM19 7 49.4 .438 6 385 345-385 430-475 90 .05 .058 2.25 3.28 83.3 3 85.1



























    Notes:
    1 Maximum Gear Train Loading.
