Permanent Magnet DC Stepper BAS Direct Drive Specifications:
| Step Angle: | 18° |
| Number of Phases: | 4 phase bifilar Standard |
| Lead Wire: | 6 leads 24AWG (approx. 12 inches [304.8 mm]) |
| Operation Ambient Temp: | -10°C to +40°C (approx.) |
| Note: Typical data subject to change without notification | |
Additional Information:
|
This small stepping motor has a relatively high
torque/inertia ratio. Its design recognizes the
demand for small components to fit where space
is severely limited. The BAS series motor is available from stock in 5, 6, 12, and 24 volt models. They have a holding torque of 1.1 ounce-inch [7.8 mN-m]. All have a step angle of 18° or 20 steps per revolution. Applications are found in a wide range of medical and scientific instruments and robotics. These stepping motors are also recommended for low duty - cycle, battery operated equipment. |

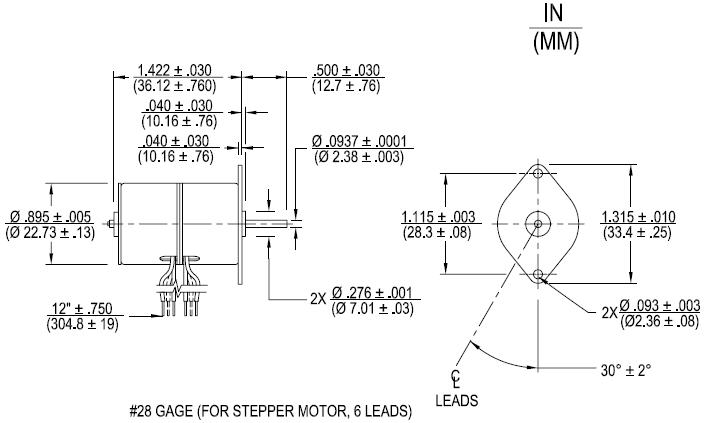

BAS Direct Drive Drawings:
 |

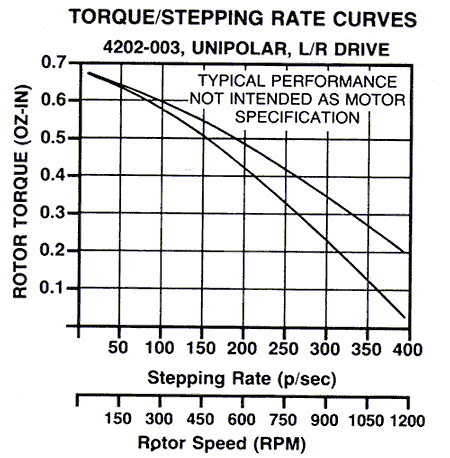

BAS Direct Drive Diagrams:
 |
 |
BAS Direct Drive Model Table:
| Model |
Part Number |
Rated Torque @ 200 p/s (oz-in) |
Rated Torque @ 200 p/s (mN-m) |
Rated Torque @ 4-5 p/s (oz-in) |
Rated Torque @ 4-5 p/s (mN-m) |
Holding Torque 2 Phase Energized (oz-in) |
Holding Torque 2 Phase Energized (mN-m) |
Typical Output Speed (RPM) |
Nominal Voltage (Vdc) |
Step Angle (deg) |
Steps per Rev. |
Input Power (watts) |
Full Load Temp Rise (deg C) |
Rotor Inertia (gm-cm2) |
Rotor Inertia (oz-in2) |
Winding Res. (ohms) |
Weight (oz) |
Weight (grams) |
| BAS | 4202-001 | .5 | 3.5 | .5 | 3.5 | 1.1 | 7.77 | 300 | 5 | 18 | 20 | 2.5 | 46 | 217.7 | 1.2 | 20 | 2.12 | 60 |
| BAS | 4202-002 | .5 | 3.5 | .5 | 3.5 | 1.1 | 7.77 | 300 | 6 | 18 | 20 | 2.5 | 46 | 217.7 | 1.2 | 29 | 2.12 | 60 |
| BAS | 4202-003 | .5 | 3.5 | .5 | 3.5 | 1.1 | 7.77 | 300 | 12 | 18 | 20 | 2.5 | 46 | 217.7 | 1.2 | 115 | 2.12 | 60 |
| BAS | 4202-004 | .5 | 3.5 | .5 | 3.5 | 1.1 | 7.77 | 300 | 24 | 18 | 20 | 2.5 | 46 | 217.7 | 1.2 | 461 | 2.12 | 60 |
