Hysteresis Synchronous Motor Family
Series AR-DA Geared Reversible Hysteresis

Discontinued Motors, for reference only

Hysteresis Synchronous AR-DA Geared Specifications:
Output Speed: 1 to 600 RPM
Torque Range: Up to 100 oz-in [706 mN-m]
Insulation Class: Class A (105°C)
Lead Wire: 4 leads 22AWG (approx. 9 inches [228.6 mm])
Operation Ambient Temp: -10°C to +40°C (approx.)
Shaft Bearing: Sleeve Bearing
Recognition: E37163, Component Time Indicating and Recording Appliances,
115Vac 60 Hz Standard Rotor
Certification: Card No. 42576, Motors and Generators,
115 Vac, 60 Hz, Standard Rotor, 3 watts max.
Capacitor is required for operation.  Capacitor supplied with 115 Vac motors.
Note:  Typical data subject to change without notification
Additional Information:
Hurst offers two series of the DA Hysteresis Synchronous Geared motor with an integral clutch; one of them being the AR-DA (see PC-DA for other style).  The clutch on both series is controlled by an actuator which can be specified for operation from either an AC or DC supply.  Motors can also be built to order for operation at any AC voltage.

The gearing in AR-DA motors is designed for heavy duty application with loads up to 100 oz-in [706 mN-m].  Geared trains are fabricated from brass gears and steel pinions with hardened wheel shafts running in bronze bearings packed with grease for lifetime lubrication.  In addition to the stock motors listed here, a large number of speeds are available as built-to-order items.

AR-DA

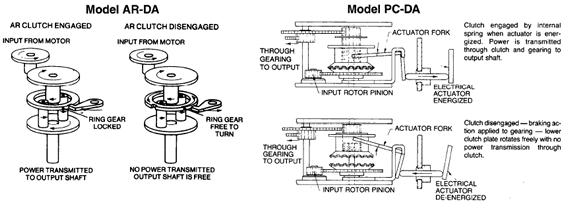

The series AR-DA utilizes a planetary type clutch which operates directly upon the output shaft as depicted in the figure below.  When the clutch is disengaged the output shaft is free to rotate and be reset.  The reset operation may be accomplished manually or automatically by means of an external spring.

Notes:
  • A capacitor is required for operation and is supplied with 115V motors.
  • Models listed below are designated for 115, 60 Hz operation of both motor and actuator.

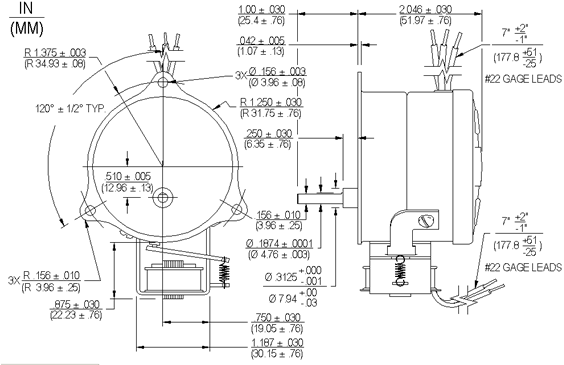

    • AR-DA Geared Drawings:

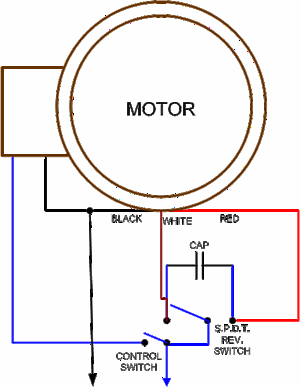

    AR-DA Geared Diagrams:
    AR-DA Geared Model Table:
    Model Part
    Number         		Rated
    Torque
    (oz-in)         		Rated
    Torque
    (mN-m)         		Rated
    Torque
    (In-Lbs)         		Reduction Output
    Speed
    (RPM)
    60Hz         		Input
    Power
    (watts)         		Voltage
    (Vac)
    60Hz         		Capacitor
    Value
    (mfd)         		Weight
    (oz)         		Weight
    (grams)
    AR-DA 991223 100 706.2 6.25 3600 1 5 115 .5 22.01 624
    AR-DA 991224 30 212 1.9 900 4 5 115 .5 22.01 624
    AR-DA 991227 4 28 .25 120 30 5 115 .5 22.01 624
    AR-DA 991258 60 424 3.8 1800 2 5 115 .5 22.01 624



















    Notes:
    1 Maximum Gear Train Loading.
