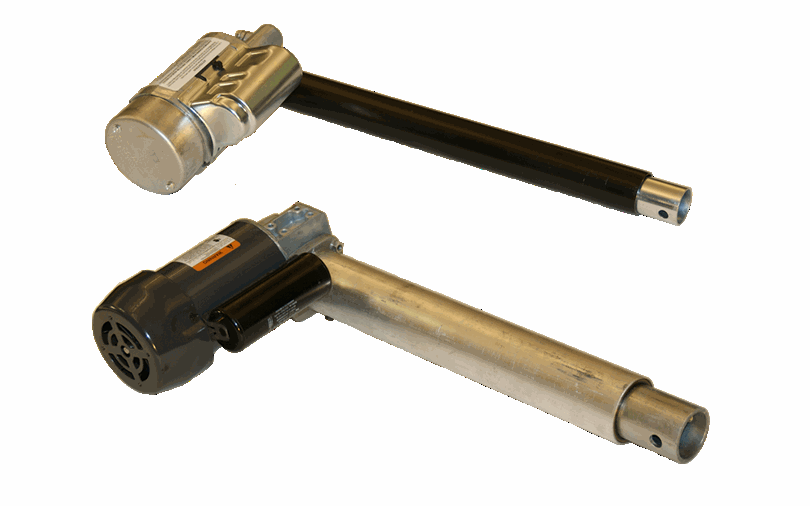

Series 3.7" AC Induction Linear Actuator Motor
Series 3.7" AC
Induction Linear Actuator Specifications:
| Rotation: | Reversible |
| Duty Cycle: | 25 % |
| Thermal Protection: | Automatic Reset |
| Lead Wire: | 4 leads 18 AWG (approx. 16 inches [406.4 mm]) |
| Maximum Ambient Temp: | 40°C/104°F |
| Motor Construction: (See table below for options) |
Totally Enclosed Non-Ventilated (TENV) Totally Enclosed Fan-Cooled (TEFC) |
| Operating Voltage / Frequency | 115 Vac / 60 Hz |
| Applications: | Pushing, Pulling, Lifting, and Positioning |
| Note: Typical data subject to change without notification | |
Series 3.7" AC
Induction Linear Actuator Diagrams:
| Click PDF icon
below for specification sheet. Click CAD icon below for CAD drawing. If your file does not open or ask you to save, right click on the icon and click "Save Target As." |
|
Add to Cart |
Part Number |
View Spec Sheet / Drawing |
Motor Type |
Motor Construction |
Gear Reduction |
Rated Horsepower (hp) |
Rated Load (lbs) |
Linear Speed (in/min) |
Travel (in) |
Voltage (Vac) 60Hz |
Full Load Amps (amps) |
Capacitor Value (mfd) |
Weight (lbs) |
Weight (kg) |
| K037A283382725E1 |
 /
 |
Linear | TEFC | 36 | 1/3 | 1300 | 8.9 | 10 | 115 | 4.2 | 43-53 | 10.2 | 4.63 | |
| K037A283380725E1 |
/
|
Linear | TEFC | 16 | 1/3 | 1000 | 20 | 12 | 115 | 4.2 | 43-53 | 21.05 | 9.55 | |
| K037A283372725E1 |
/
|
Linear | TEFC | 36 | 1/9 | 1000 | 8.9 | 12 | 115 | 1.8 | 30-36 | 19.71 | 8.94 | |
| K037A323364725E1 |
/
|
Linear | TENV | 24 | 1/5 | 400 | 8.4 | 12 | 115 | 1.4 | 16-20 | 14 | 6.35 | |
| K037A323363725E1 |
/
|
Linear | TENV | 10.3 | 1/3 | 300 | 19.4 | 12 | 115 | 1.4 | 16-20 | 13.89 | 6.3 |
|
Notes: 1 Capacitor not supplied with motor. |
