Permanent Magnet AC Synchronous Motor Family
Series A, AB Direct Drive
Permanent Magnet AC Synchronous A, AB Direct Drive Specifications:
Output Speed: 300 and 600 RPM
Insulation Class: Class A (105°C)
Lead Wire: 4 leads 22AWG (approx. 9 inches [228.6 mm])
Operation Ambient Temp: -10°C to +40°C (approx.)
Shaft Bearing: Sleeve Bearing
Recognition: E37163, Component Time Indicating and Recording Appliances,
115Vac 60 Hz Standard Rotor
Certification: Card No. 42576, Motors and Generators,
115 Vac, 60 Hz, Standard Rotor, 3 watts max.
Capacitor is required for operation.  Capacitor supplied with 115 Vac motors.
Note:  Typical data subject to change without notification
Addtional Information:
Series A and AB reversible, permanent magnet direct drive 60Hz models have synchronous speeds of 300 RPM and 600 RPM respectively.

Standard motors are 115VAC for 60HZ operation. Other voltages and 50 Hz frequency may be specified. Rated torque with standard rotor for A and AB is 2.0 oz-in [14.1 mN-m] and 2.3 oz-in [16.2 mN-m]; with Hi-Torque rotor is 2.7 oz-in [19.1 mN-m] and 3.75 oz-in [26.5 mN-m]respectively.

These motors, among the most popular in the HURST® line, are designed for heavy duty and are widely used in computer peripheral equipment, chart drives, medical instruments and a great variety of industrial applications.

Notes:
  • Motors Listed below are 115V,60 Hz models.
  • Capacitors are required for operation and must be used in the circuit even if the motor is used in a unidirectional mode
    		•

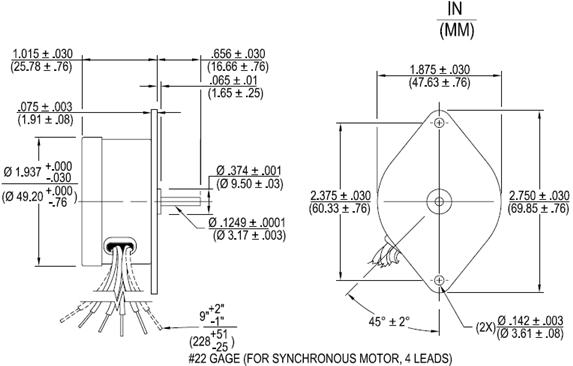

    A, AB Direct Drive Drawings:
    A, AB Direct Drive Diagrams:
    A, AB Direct Drive Model Table:























    Add
    to
    Cart         		Model Part
    Number         		Stock Rated
    Torque
    (oz-in)         		Rated
    Torque
    (mN-m)         		Rated
    Torque
    (In-Lbs)         		Output
    Speed
    (RPM)
    60Hz         		Input
    Power
    (watts)         		Voltage
    (Vac)
    60Hz         		Full
    Load
    Temp
    Rise
    (degC)         		Capacitor
    Value
    (mfd)         		Weight
    (oz)         		Weight
    (grams)
    		A 3001-001 Stock 2.0 14.122 0.125 300 3 115 21 0.25 6.81 193
    		A 3001-0031   2.0 14.122 0.125 300 3 24 21 5.7 6.81 193
    		A 3001-0051   2.0 14.122 0.125 300 3 230 21 0.062 6.81 193
    		A 3009-0012,3   2.7 19.065 0.16875 300 3 115 21 0.25 6.81 193
    		A 3009-0021   2.7 19.065 0.16875 300 3 24 21 5.7 6.81 193
    		AB 3005-001 Stock 2.3 16.241 0.14375 600 5 115 36 0.5 6.81 193
    		AB 3005-0031   2.3 16.241 0.14375 600 5 24 36 10 6.81 193
    		AB 3011-001   3.7 26.479 0.234375 600 6.5 115 43 0.62 6.81 193
    Notes:
    1 Capacitor not supplied with motor.
    2 Hi-Torque Rotor Construction.
    3 Maximum Gear Train Loading.
